Liteline 4" Luna LED Black Round Gimbal Recessed Fixture, Model RA4-12G-90BK
Description

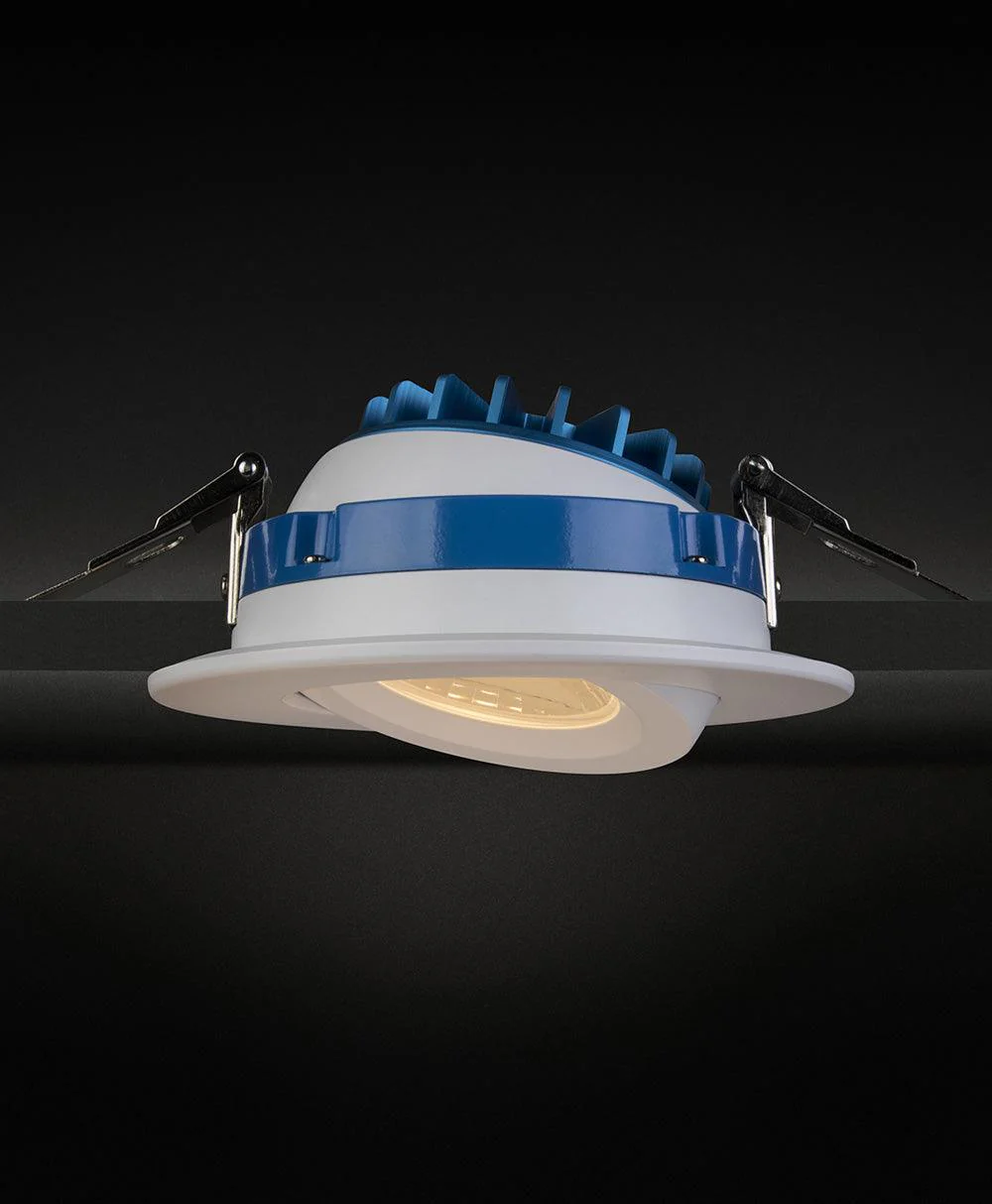

The RA4-12 is a 12 watt 4" round gimbal recessed light fixture for retrofit application. It is a high-performance, easy to install downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for wet locations.
Features
- Durable airtight aluminum body with adjustable gimbal. Includes Anodized blue heat sink to provide maximum airflow for the LED light source
- This general application light fixture features a 12 watt LED module that maintains uniform intensity producing up to 840 lumens, with a typical CRI of 90.
- Selectable color, from 2700k to 5000k
- 100%-10% dimming capability. Compatible with industry standard TRIAC/ELV dimmers.
- The lens provides 40° beam spread
- Includes two spring loaded clips to attached to any ceiling material
- Extruded aluminum hardwire box with 300mA dimmable class II electronic LED driver with 100-135V AC input. Includes an 18" FT6 rated cable with DC 2.1 connector between driver and fixture approved for use in plenums and suspended ceilings
- Three "quick connect" push-in terminals for fast and easy wiring
- Operating temperature of -20°C to 40°C (-4°F to 104°F)
- Suitable for wet locations
- Approved for direct contact with insulation
Technical Information
Application: Ceiling Recess Mount
Approved Location: Wet / Insulated Ceilings
Beam Angle: 40°
CCT (color selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
Certification: cETLus
Class II: Yes
Color: Black
CRI: 90
Dimming: Yes
Dimming Tech: Forward/reverse-phase, TRIAC/ELV
Energy Star: Yes
Hole Cut: Ø 4¼ " (108mm)
Input: 100-135V AC, 60Hz
Lumens: Up to 840
Lumens per Watt: Up to 71
Power Factor: 0.9
Projected Life: 70% @ 50,000 hrs
Warranty: Lifetime
Wattage: 12W
